Suspended Impact Idler

▪ Protecting belts at transfer points
▪ Absorbing high impact
▪ Less dynamic loads
▪ Transport heavier material
▪ Protecting the belt and idlers
▪ Preventing material spillage
▪ Preventing belt misalignment

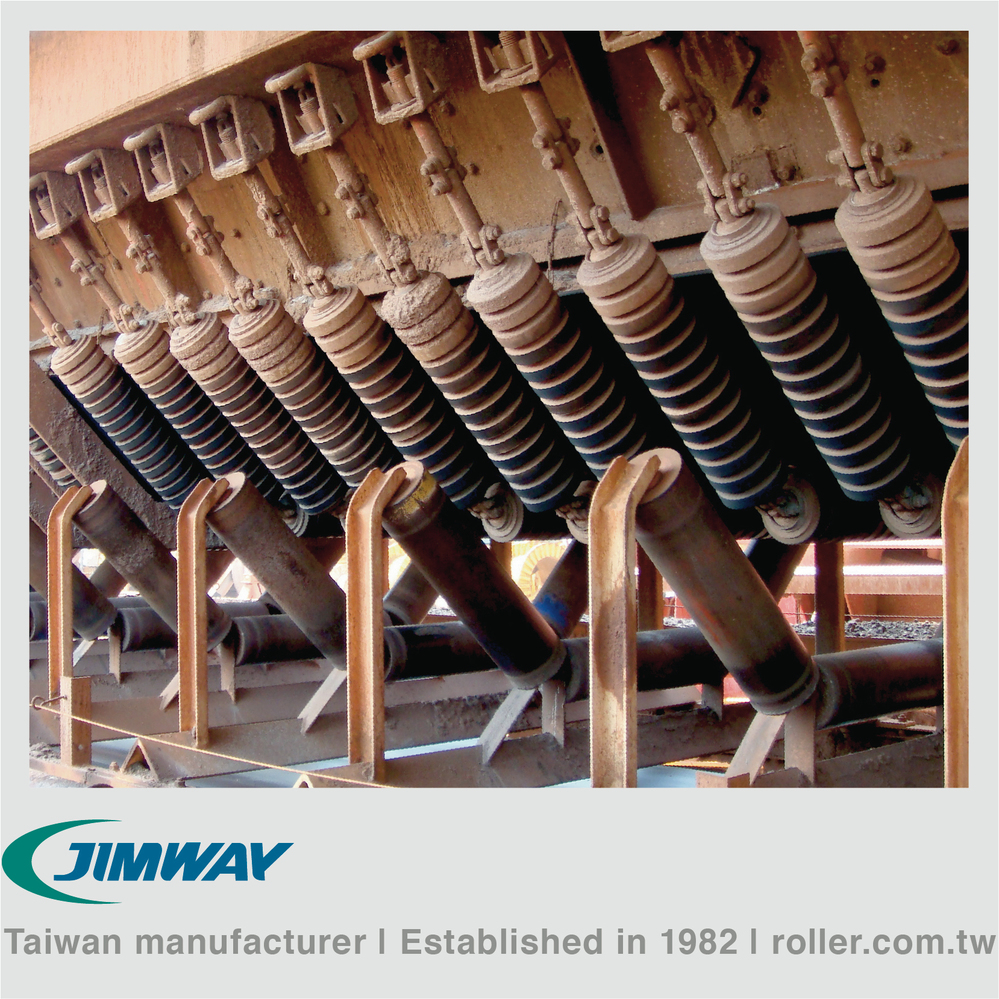

▪ Position: transfer loading zone
▪ Belt width: 1200~2000mm [47.24"~78.74"]

Model : JSI-1/JSI-2

Specifications

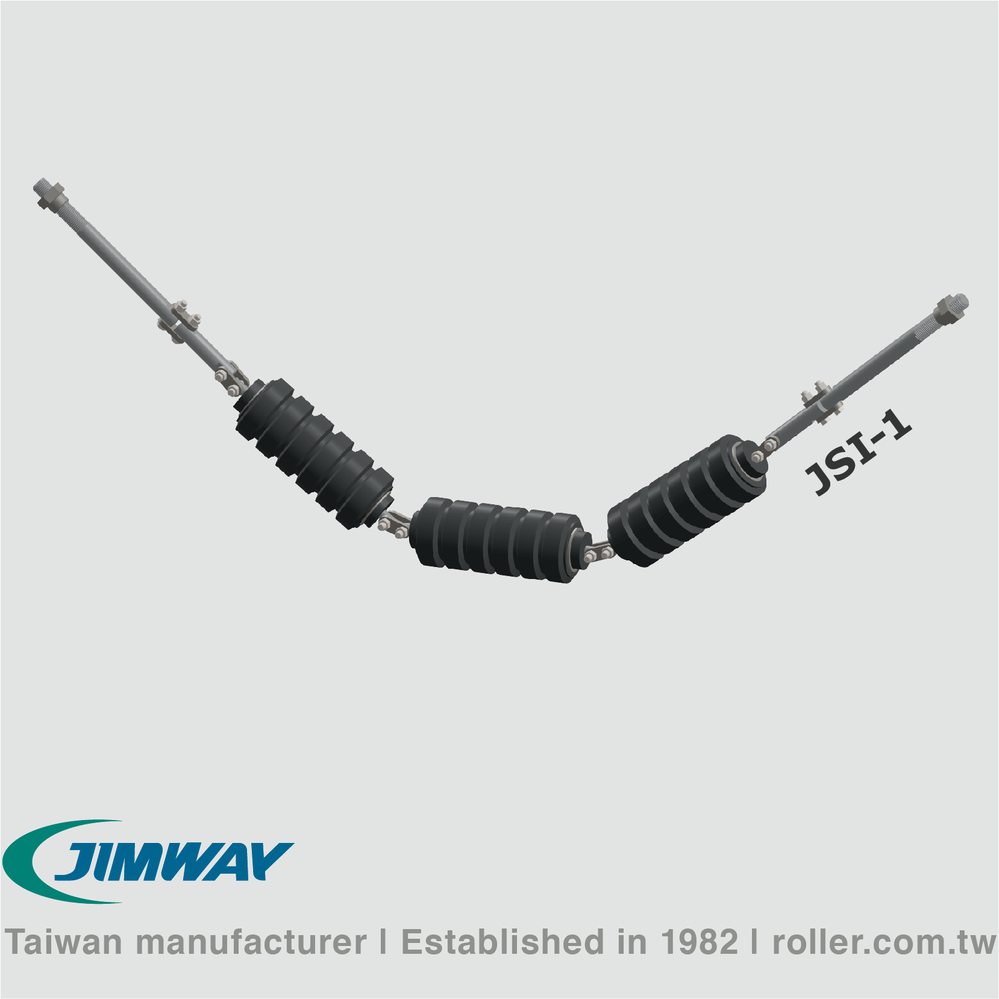

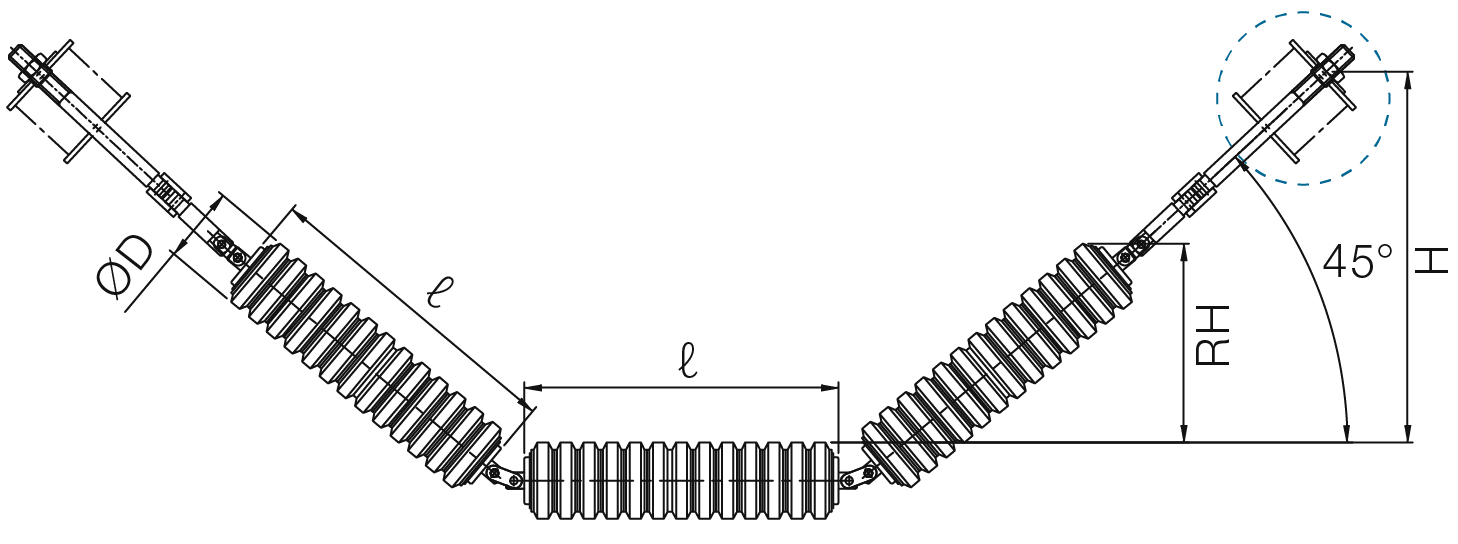

Type: JSI-1

Unit:mm [in]

Model BW ØD ℓ RH H

JSI-1-120 1200 [48] 140 420 279 356

JSI-1-140 1400 [54] 166 500 331 408

JSI-1-160 1600 [63] 166 580 383 459

JSI-1-180 1800 [72] 166 650 432 549

JSI-1-200 2000 [78] 166 730 483 600

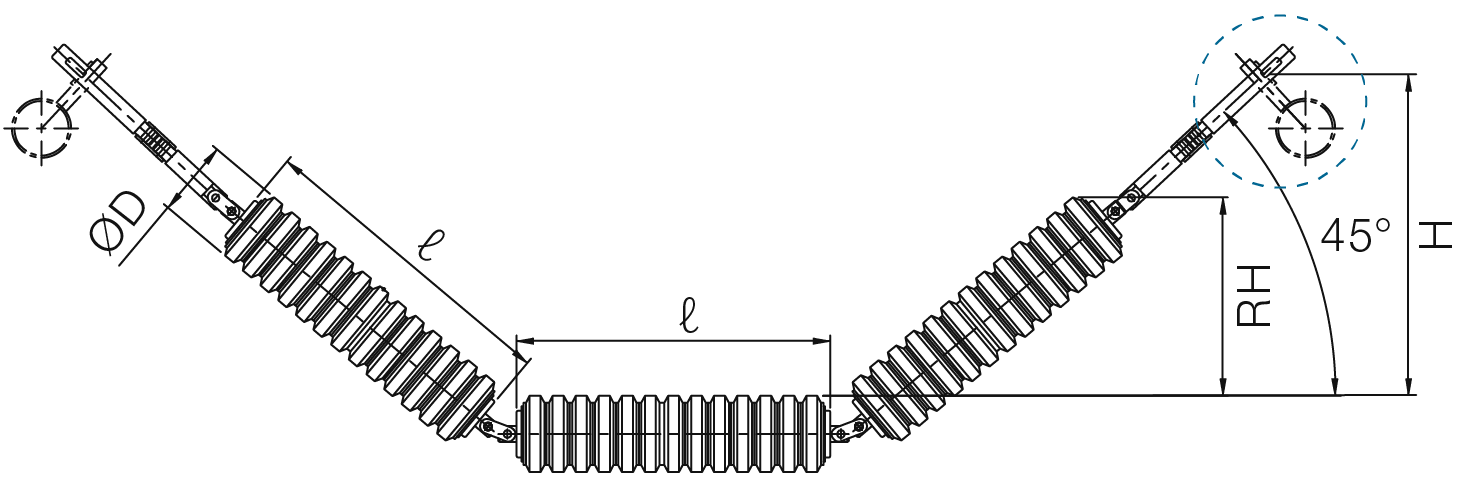

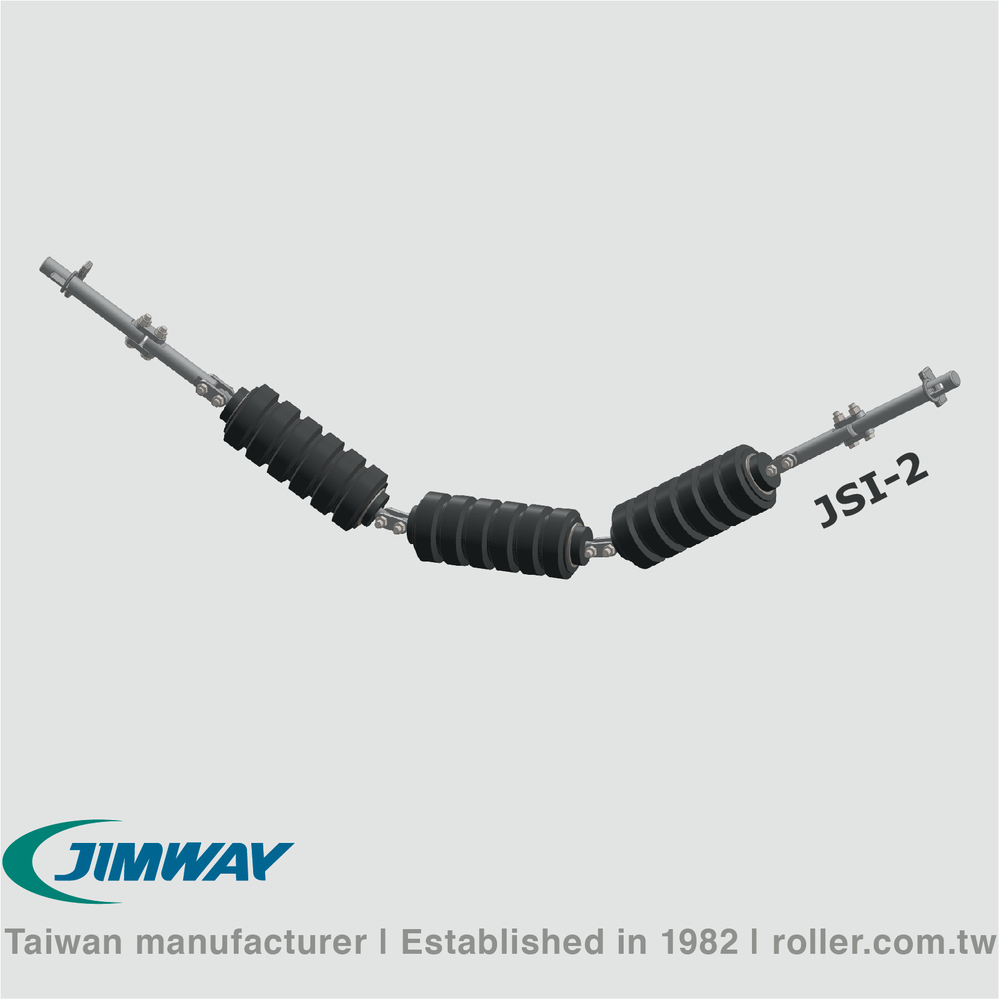

Type: JSI-2

Unit:mm [in]

Model BW ØD ℓ RH H

JSI-2-120 1200 [48] 140 420 279 356

JSI-2-140 1400 [54] 166 500 331 408

JSI-2-160 1600 [63] 166 580 383 459

JSI-2-180 1800 [72] 166 650 432 549

JSI-2-200 2000 [78] 166 730 483 600

				Unit:mm [in]
Model	BW	ØD	ℓ	RH	H
JSI-1-120	1200 [48]	140	420	279	356
JSI-1-140	1400 [54]	166	500	331	408
JSI-1-160	1600 [63]	166	580	383	459
JSI-1-180	1800 [72]	166	650	432	549
JSI-1-200	2000 [78]	166	730	483	600

				Unit:mm [in]
Model	BW	ØD	ℓ	RH	H
JSI-2-120	1200 [48]	140	420	279	356
JSI-2-140	1400 [54]	166	500	331	408
JSI-2-160	1600 [63]	166	580	383	459
JSI-2-180	1800 [72]	166	650	432	549
JSI-2-200	2000 [78]	166	730	483	600
