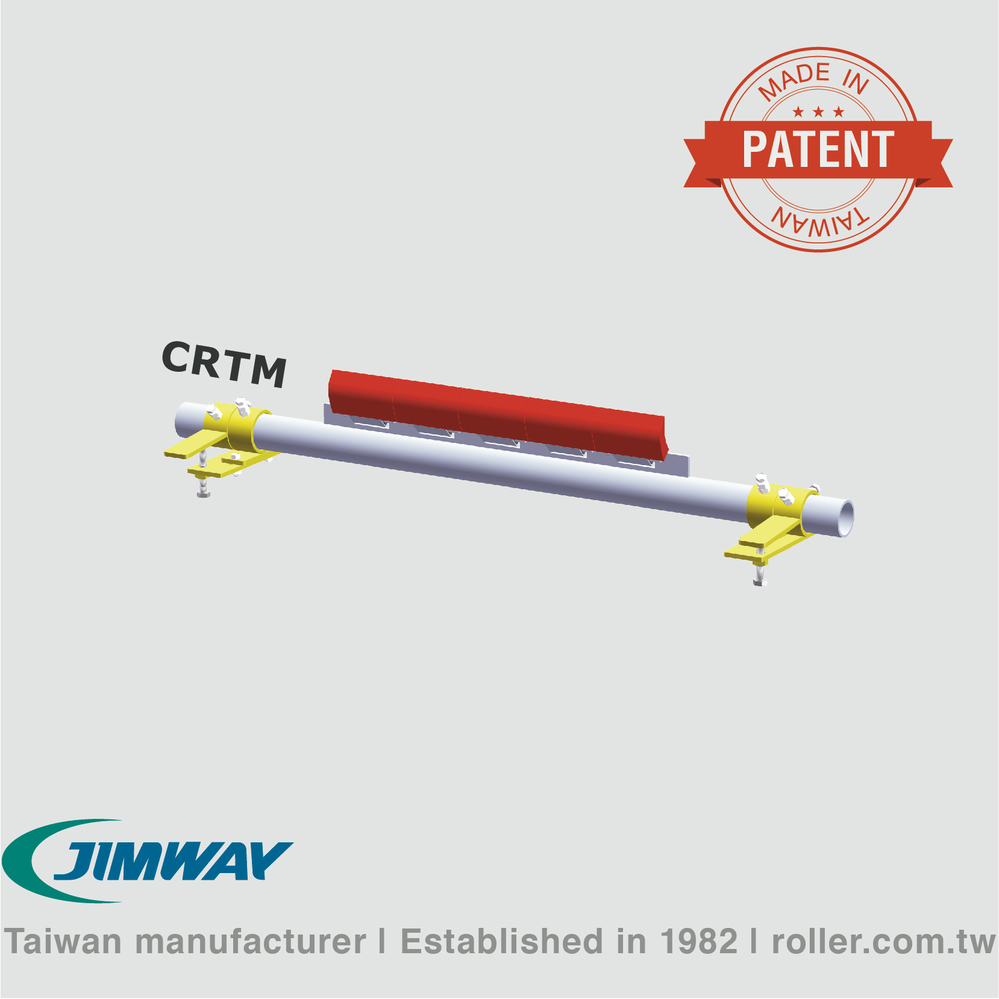

Limited Space Precleaner
▪ Torsion element design
▪ Used on spliced belts
▪ Used on limited space
▪ Belt-friendly
▪ Simplicity and economy of use
JIMWAY'S PATENTED CRTM PRECLEANER USED FOR SMALL DIAMETER PULLEYS WHERE SPACE AND SIZE IS A FACTOR THAT WITH A TORSION ELEMENT CAN SELF-ADJUST AND MAINTAIN BLADE-TO-BELT CONTACT.
Due to a torsion element, the blade moves away from a passing splice without damage. Carryback adheres to the belt, which causes serious material accumulation and residue build-up return rollers. Therefore, belt mistracking or belt-edge damage results in unscheduled downtime. Jimway's CRTM belt cleaner is a easy solution to provide maximum cleaning power for tough applications.
––––––––––––––––––––––––––––––––––––––
Belt Width 450~1600mm [17.7"~63.0"]
Pulley Dia. ≥250mm [9.8"]
Cleaning Direction one direction only
Blade Material PU

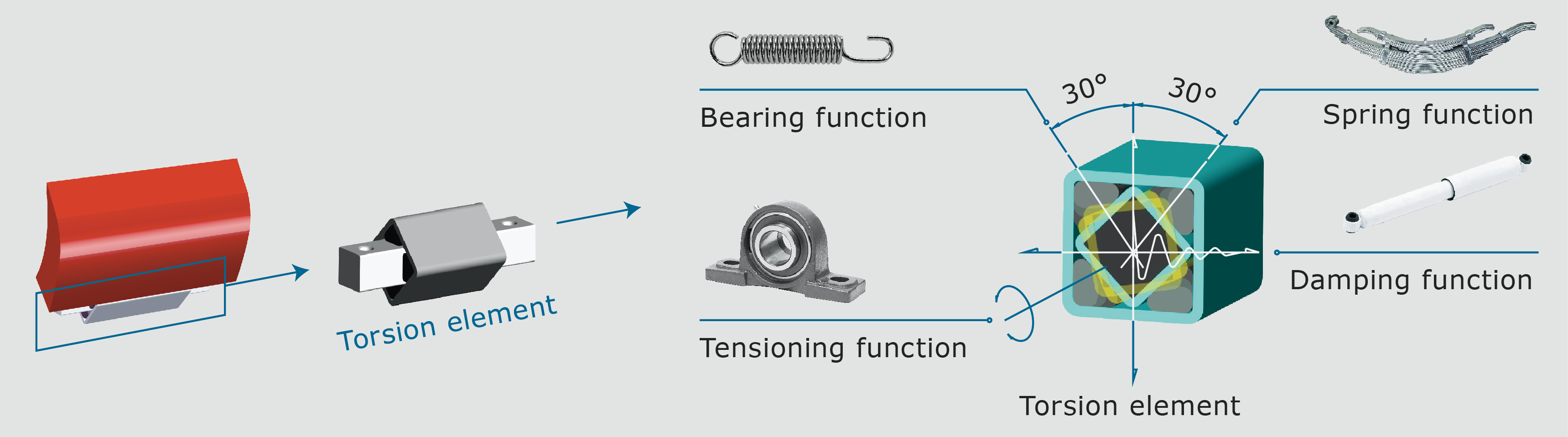

TORSION ELEMENT
Absorb and external force
- Simultaneously absorbing vibration and noise
- Maintenance-free
- No abrasion and wear problems

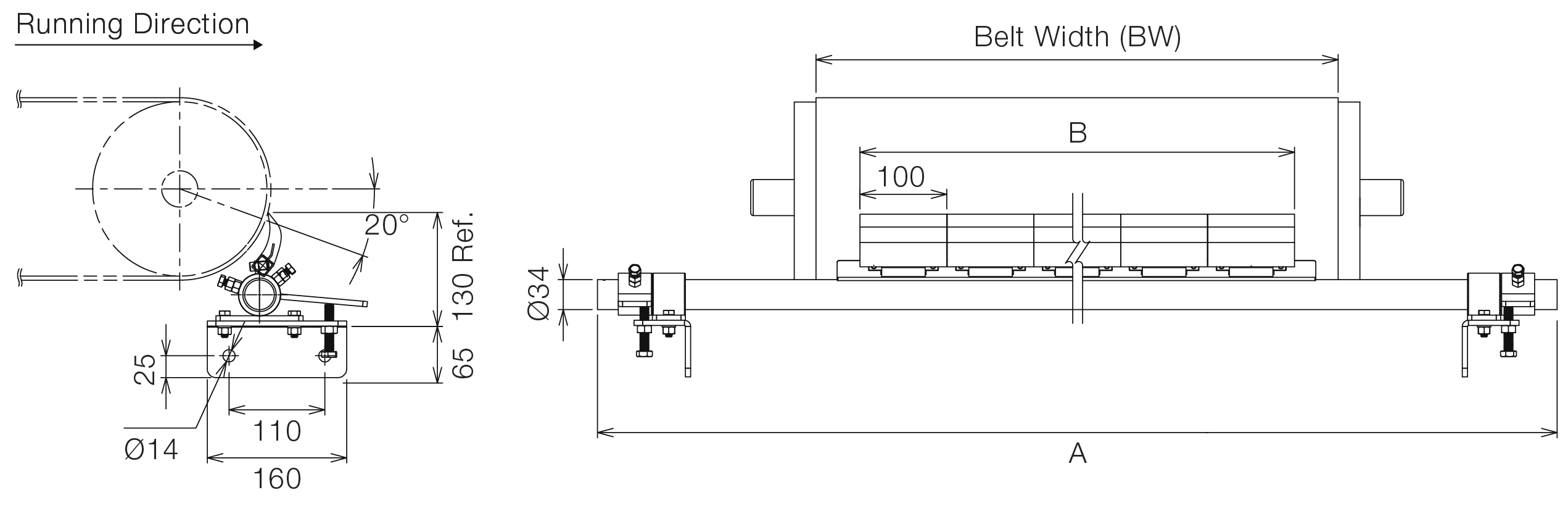

| Unit:mm [in] | ||||
| Model | BW | A | B | Blades Req. |
| CRTM-045 | 450 [18] | 800 | 300 | 3 |
| CRTM-050 | 500 [20] | 800 | 400 | 4 |
| CRTM-060 | 600 [24] | 1000 | 500 | 5 |
| CRTM-065 | 650 [26] | 1000 | 600 | 6 |
| CRTM-070 | 700 [28] | 1100 | 600 | 6 |
| CRTM-080 | 800 [31] | 1200 | 700 | 7 |
| CRTM-090 | 900 [36] | 1300 | 800 | 8 |
| CRTM-100 | 1000 [40] | 1500 | 900 | 9 |
| CRTM-105 | 1050 [42] | 1500 | 1000 | 10 |
| CRTM-120 | 1200 [48] | 1700 | 1100 | 11 |
| CRTM-140 | 1400 [54] | 2000 | 1300 | 13 |
| CRTM-160 | 1600 [63] | 2200 | 1500 | 15 |

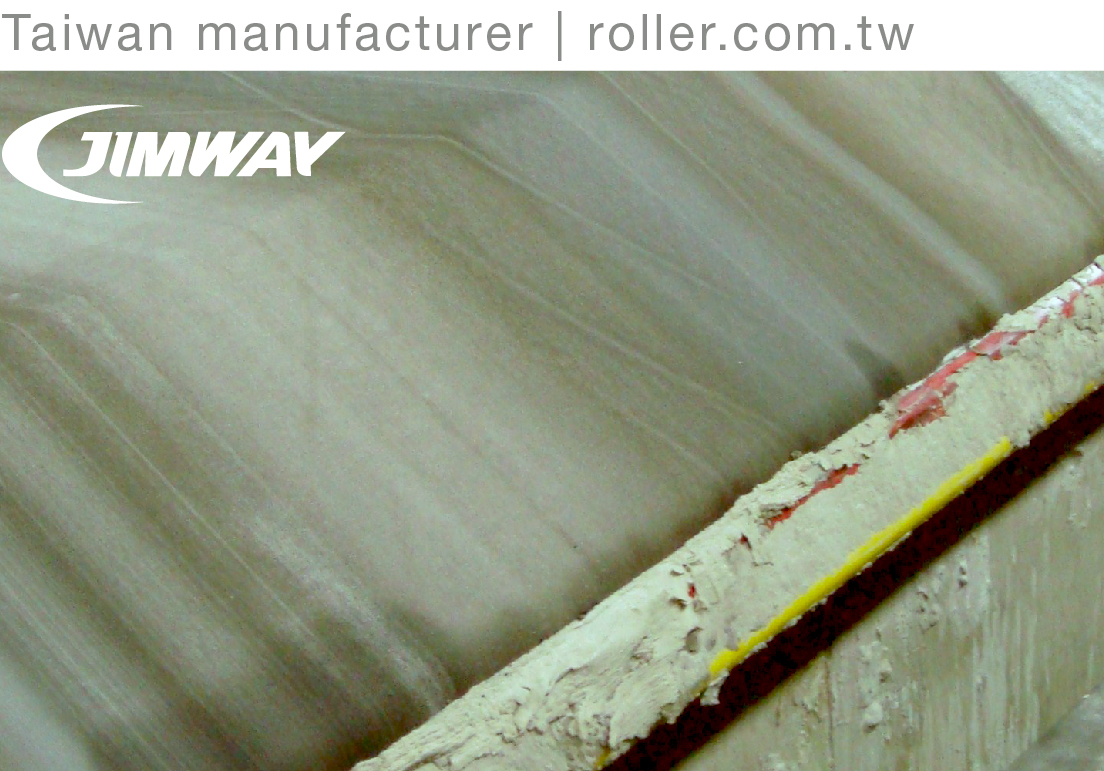

▪ Excellent elasticity

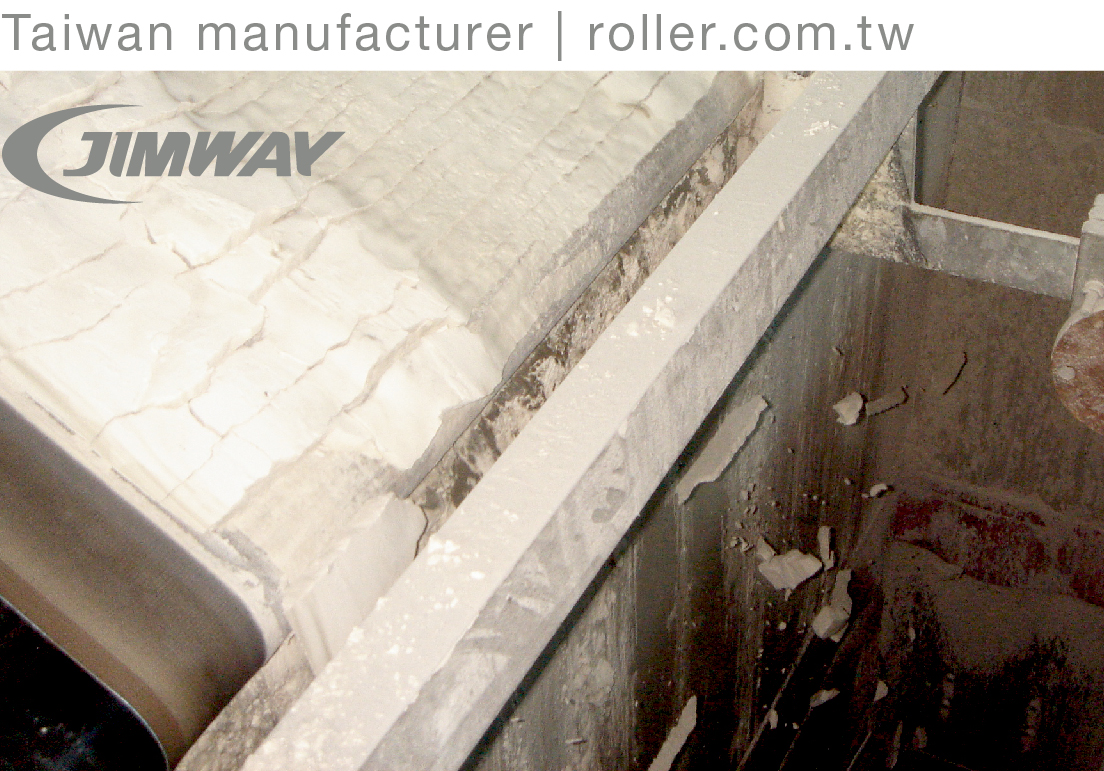

▪ Used on the spliced belts
▪ Self-adjust blade via torsion element
for maintaining blade-to-belt contact
▪ Used on limited space
▪ Simplicity and economy of use
▪ High-performance tension blade
▪ Belt-friendly

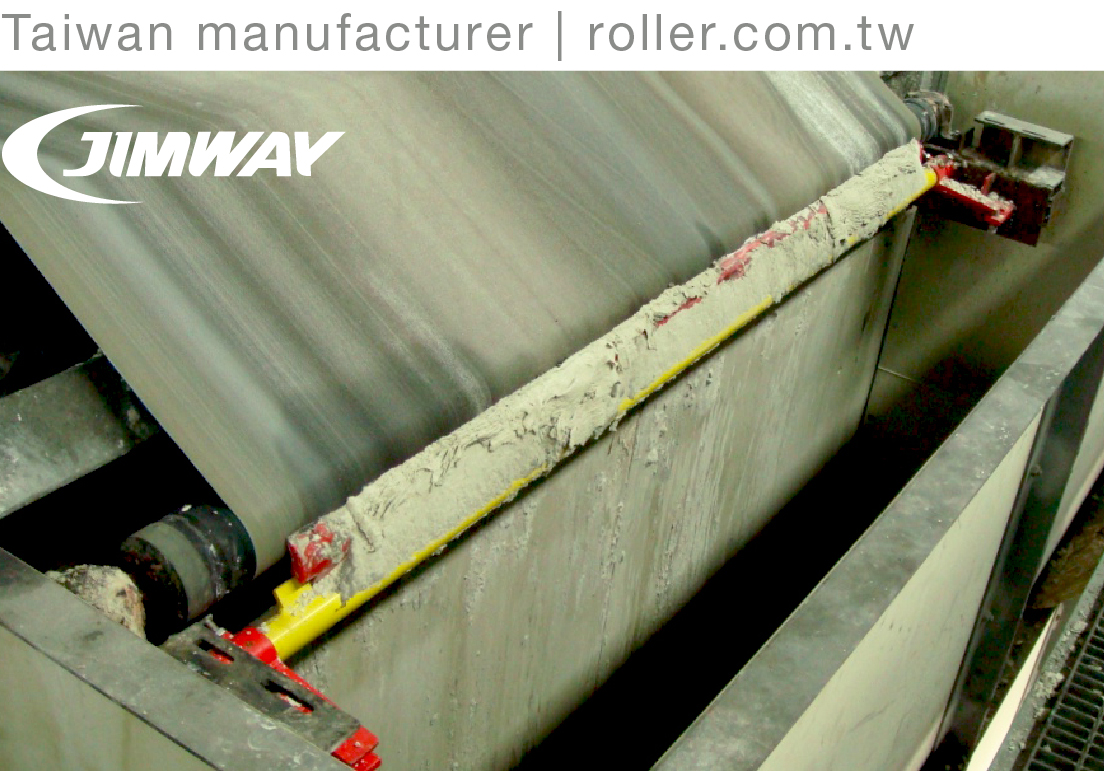

▪ Designed for tough applications

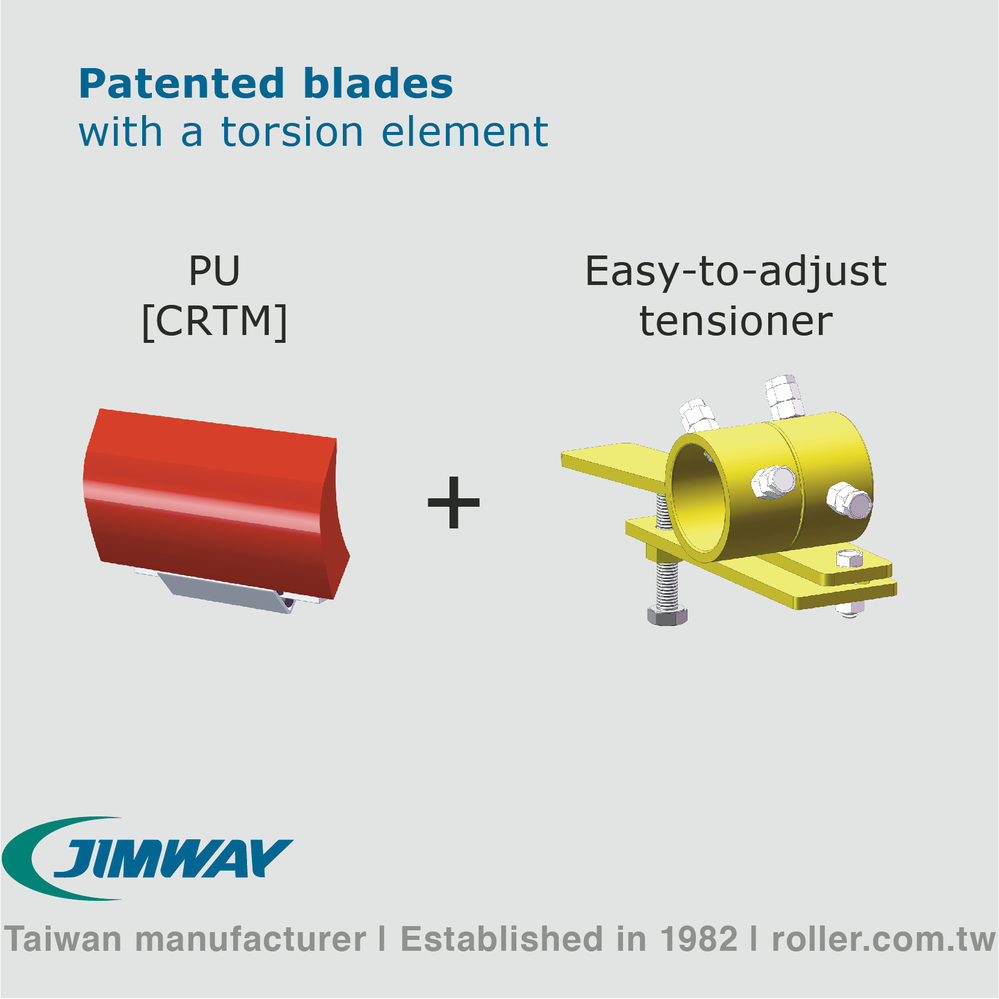

▪ Patented blade design
▪ Easy and fast installation and
maintenance
Chemical material Fertilizer, salt, sugar, and sulfur etc.
Material Coal, coke, limestone, and sandstone etc.
